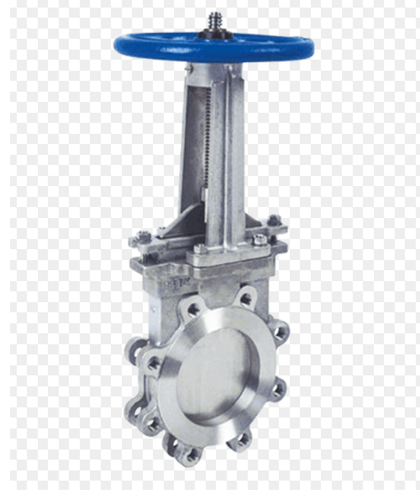

Knife edge Gate Valve manufacturer in india /Knife gate valve Manufacturer in Ahmedabad,Gujarat
1
TYPE :
Uni-directional / Bi-directional Knife Edge Gate Valve
MOC :
Cast Iron / Cast Steel / SS 304 / 316 / 304L / 316L.
Port :
Round Port, “V” Notch
END CONNECTION :
Flanged End / ull Lugged, Wafer Flangeless, Two Lug, Wafer Flangeless, Flange Type, Wafer
SIZES :
50mm T0 800mm (higher size on application)
RATING :
10 bar up to 600mm for valves with body in C.S., S.S. and specially alloy, 10 bar Up to 300mm & 5 bar on higher sizes up to 600mm with body in Cast Iron / Ductile Iron.
Drilling :
Option Include ANSI, DIN, BS, JIS and AS standard; others on request
OPERATION AVAILABLE :
Knife edge Gate Valves Operation - Manual, Cylinder Operated, Electrical Actuator, Pneumatic Actuator with Manual Override.
WIDELY USED FOR :
Knife edge Gate Valves for Slurry Lines, Sludge and Viscous Media Handling, Pulp and Paper Stock Lines, Dry Solid and Powder Handling, High Temperature Gas Lines and Many More.
