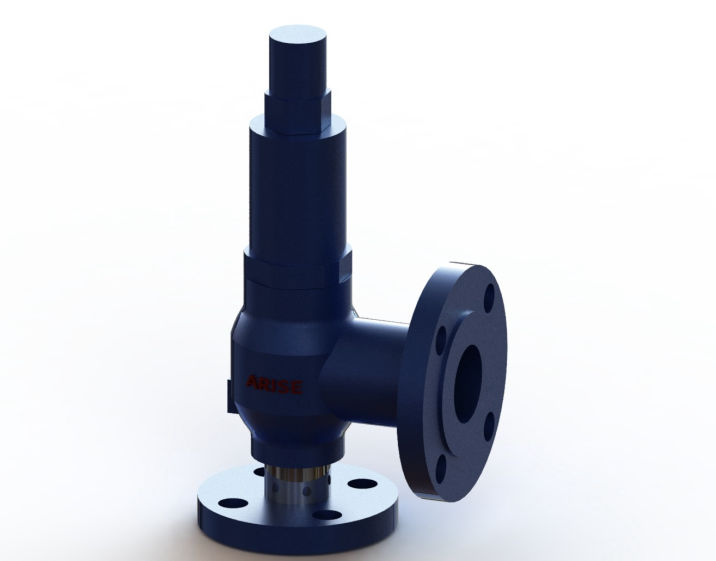

Balanced Bellow Safety Valve/Pressure Relief Valve
Manufacturer

DIN-series Balanced Bellow Safety Valve,Pressure Relief Valve are designed to meet all industrial applications with variety of connections, temperature ranges , pressure ranges and flow capabilities.S 301 is rapidly open safety relief valve used the application where the maximum mass flow has to be discharge.300 series valves are design and manufactured to meet the requirement of organizations worldwide which ensures the world wide applicability. DIN ISO EN 4126 Pressure relief valve,ASME Section VIII Div -1 Safety Valve,Pressure Relief Valve manufacturer, exporters, Supplier, India,Gujarat,Ahmedabad.

FEATURES

*one design and spring for steam,gas and liquid applications
*High flow capacity
*Blow-down ring provided for trim adjustment and easy maintenance
*high capacity seat tightness achieve to reduce the medium loss
*Stellited and hardened metal sealing may be provided for longer service life
*Soft seal option is also available
*Stainless steel bellow option is also available for high back pressure compensation
*Open or closed bonnet, packed lever/plain lever air tight cap options are available

Pressure-Relief Valve-Manufacturer

APPLICATION

*Protection of chemical processes and equipment
*Heat Exchangers
*Low & medium pressure steam
*Blowers & Turbo compressors
*Power stations & industrial super heated steam generation
*Protection of high pressure chemical processes
*Desalination plants.

SPECIFICATION

*Size : From 3/4" To 16"
*Pressure Range : 0.1 to 280 BAR
*Temperature Range : (-250°C to 550°C)
*Material: 0.6025/Grey Iron, 0.7043/Ductile Iron, 1.0619/WCB, 1.4408/CF8M,1.7357/WC6


An ISO 9001: 2015 Certified Company

Instdustry We Serve In : Oil And gas/ Petrochemical-Oil Refineries/ Fertilizer-Chemical Industry/ Food-Dairy Process/                                         Drugs-Pharmaceuticals/ Power Industy/ Paper-Pulp Industry
Domestic Market:  Ahmedabad/ Banglore / Hyderabad/ Chennai/  Mumbai / Pune/ Kolkata / Secundarabad/ Visakhapatnam/ Vadodara/    Ankleshwar/ Vapi
Media We Supply In:  Air / Gas/ Liquid/ Water/ Steam
