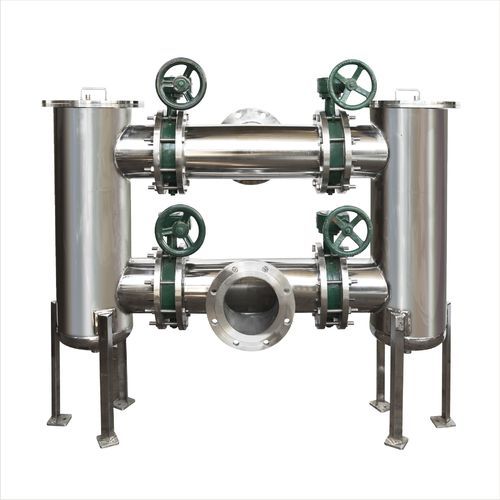

We have made a name for ourselves by offering a large selection of Duplex Cartridge Filter Housing. This product is intended for continuous process lines with two housings—one operating and the other in standby mode—that can be switched out with 3-Way ball valves or Butterfly valves without the process being interrupted. This product is simple to maintain without disrupting flow. We create housings that can accommodate up to 200 filter cartridge elements. We offer premium products with a variety of flow rates up to 1500 M3/Hr. Anywhere needed, it is employed in fine filtration.
Features:
-Hinge or Davit pipe assembly available for quick opening of cover flange.
-Housings are made with Mirror, electro polishing to resist dirt and scale.
-One coat of epoxy paint applied on outside surface for CS / MS Constructed.
-Pressure gauge arrangement at top to monitor internal pressure of housing.
-Safety valve at inlet/out connection to reduce internal pressure if increase.
-Arrangement of difference pressure monitoring instruments.
-Easy dismantle for cleaning and maintenance.
-Eye Bolt type cover locking structure
-Less pressure drop design because of considering of higher filtration area.
-Flow can be converted from one housing to others by 3-Way ball valves, 2-Way ball valves & butterfly valves as customer requirement.
-Suitable for high temperature and pressure
Design Specification-
-Customized Design available.
-Suitable up to 200 Nos of Cartridges filter element with suitable length of up to 40 inches in single cartridge filter housing.
-DOE (Double Open End) and SOE (Single Open End) Cartridge filter element can be assembled.
- Flow rate up to 1500 M³/hr.
-Mechanical Strength (ASME) Design Calculation on customer Request.
- End connection up to ½ inch NPS to 24 inches NPS in Pipe schedule
