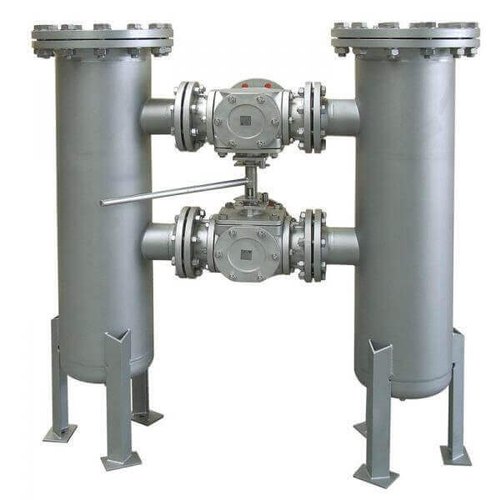

We have made a name for ourselves by offering a variety of Duplex Bag Filter Housing. This product is intended for continuous process lines with two housings—one operating and the other in standby mode—that can be switched out with 3-Way ball valves or Butterfly valves without the process being interrupted. This product is simple to maintain without disrupting flow. We create housings that can accommodate up to 30 filter bag pieces. We offer premium products with a variety of flow rates up to 1500 M3/Hr. Anywhere needed, it is employed in fine filtration.
Features:
-Eye Bolt type cover locking structure
-Less pressure drop design because of considering of higher filtration area.
-Flow can be converted from one housing to others by 3-Way ball valves, 2-Way ball valves & butterfly
valves as customer requirement.
-Suitable for high temperature and pressure.
-High dirt holding capacity.
-Not burst at high difference pressure
-Hinge or Davit arm assembly available for quick opening of cover flange.
-Housings are made with Mirror, electro polishing to resist dirt and scale.
-One coat of epoxy paint applied on outside surface for CS / MS Constructed.
-Pressure gauge arrangement at top to monitor internal pressure of housing.
-Safety valve at inlet/out connection to reduce internal pressure if increase.
-Arrangement of difference pressure monitoring instruments.
Design Specification:
-Suitable up to 30 Nos of Bag filter elements with suitable length of up to 32 inches in single housing.
-Bag filter element can be assembled with different type of collar such like PP collar bag, Snap bond collar bag, Steel ring collar bag, Rubber collar bag etc.
-Flow rate up to 1500 M³/Hr.
-Mechanical Strength (ASME) Design Calculation on customer Request.
-End connection up to ½ inch NPS to 24 inches NPS in Pipe schedule.
